Y Section Power Unit Package
Diesel, Electric, or Natural Gas
Hybrid Flow Flight Master

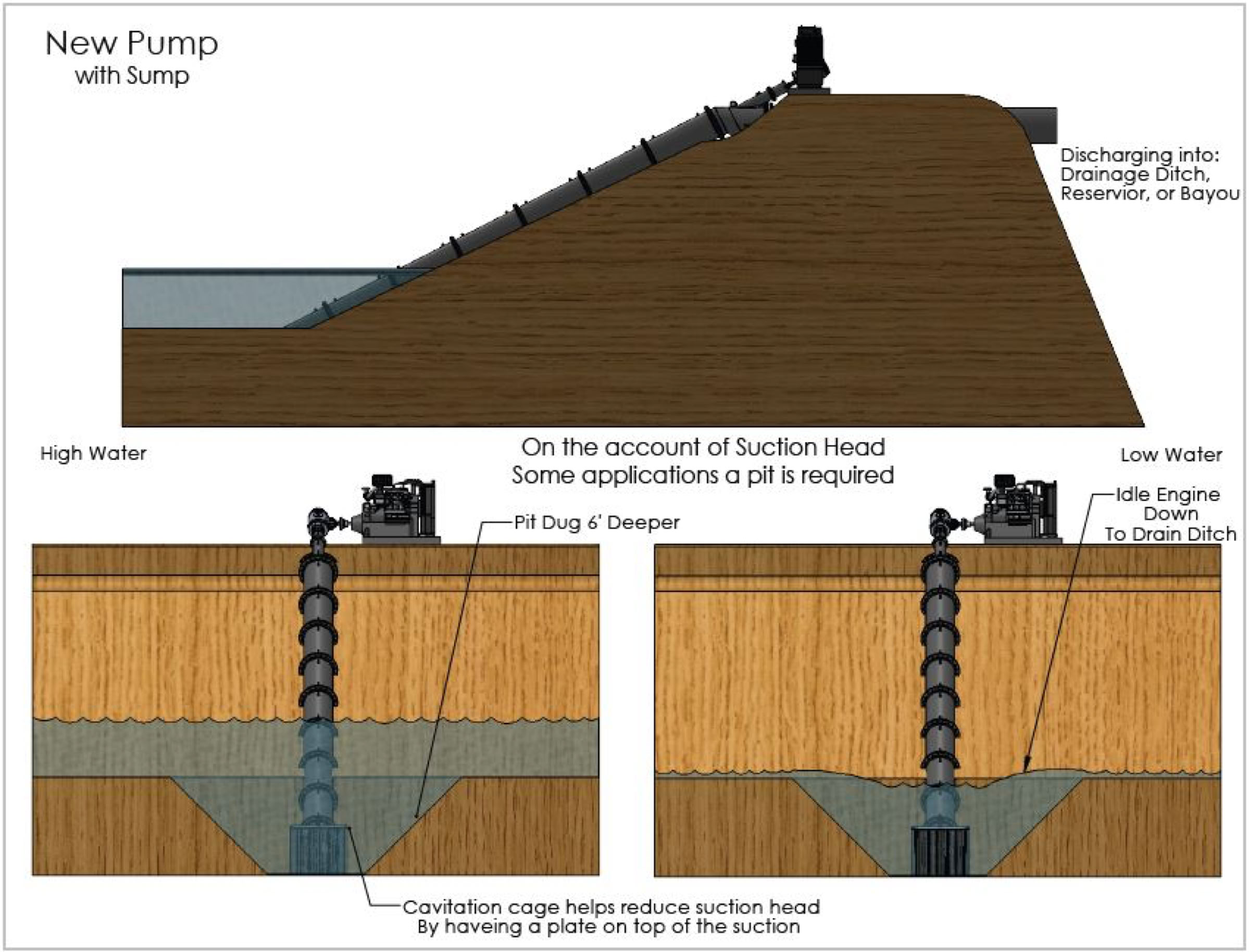

With Sump Pit
To overcome Suction Head on some applications, a pit is required below the ditch.
Our pump will discharge silt and small debris, keeping the pit clean.
9’8”
23’3”
Decrease wear and tear, increase longevity

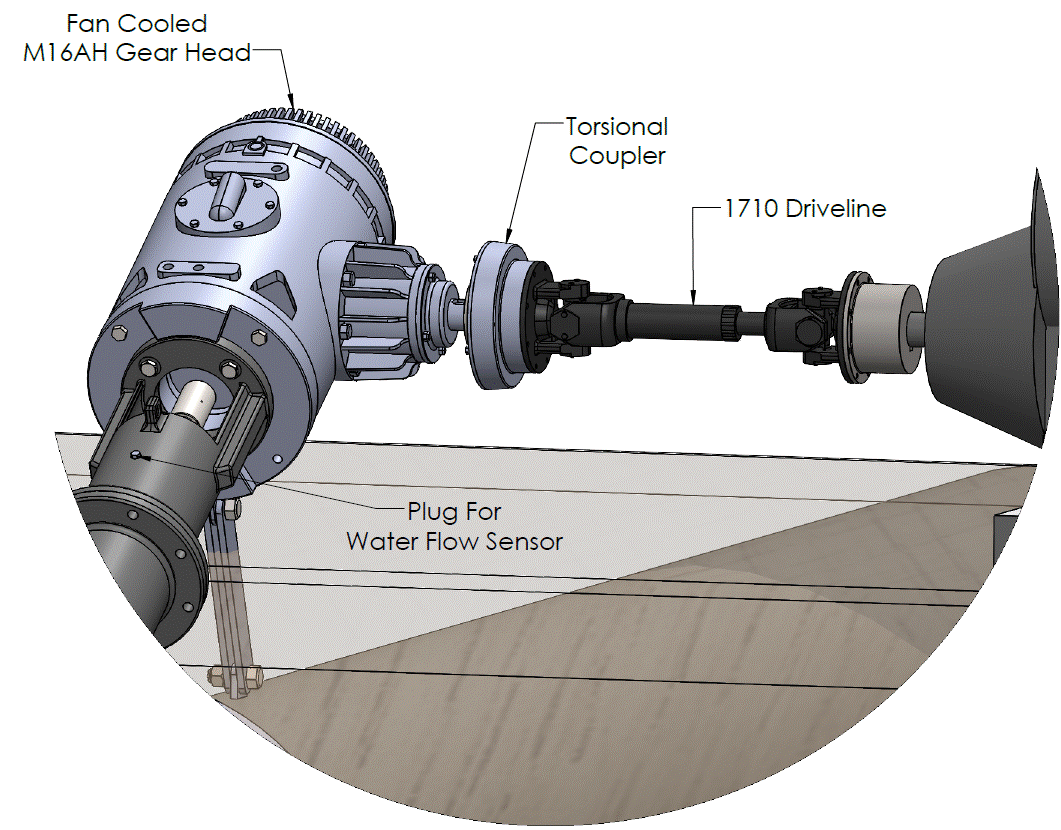

Detail

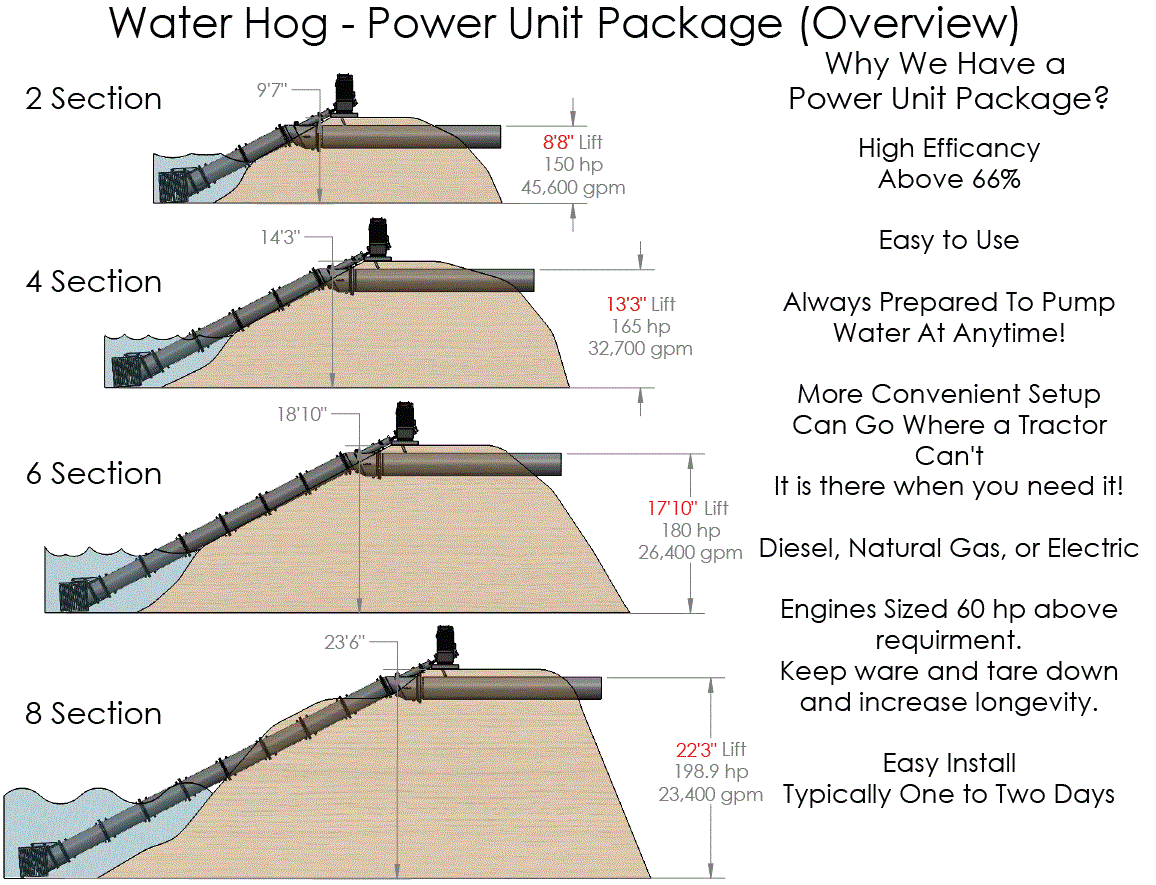

Sectional Lengths

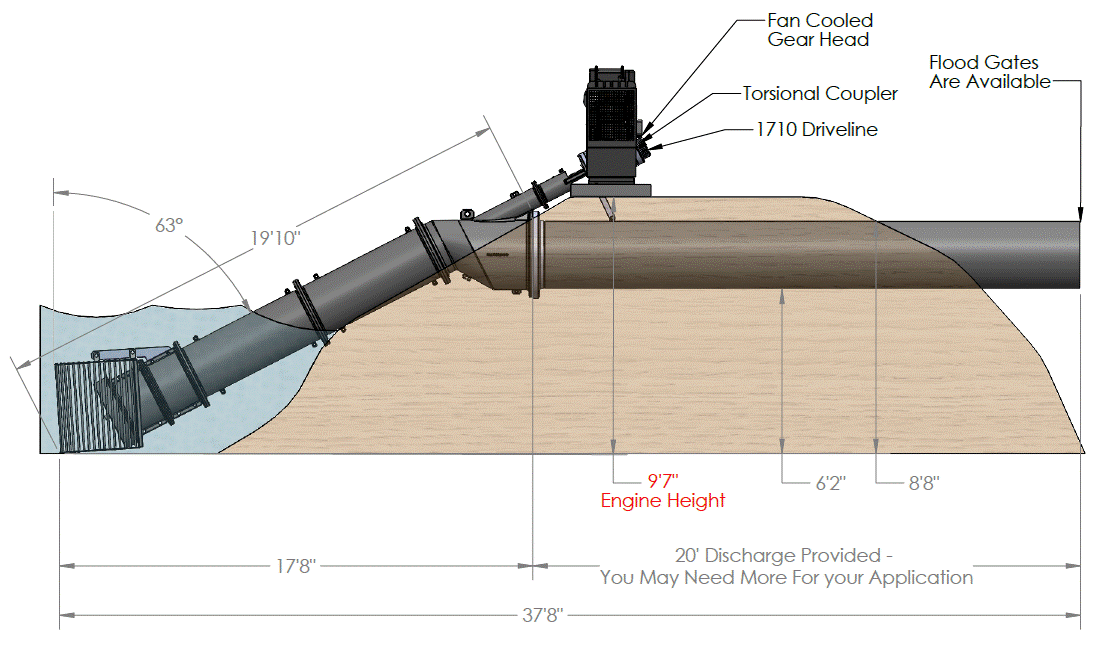

2 Section
Lift
8’8”
8.667
Power Unit Water Hog -
2 Section (Side View)

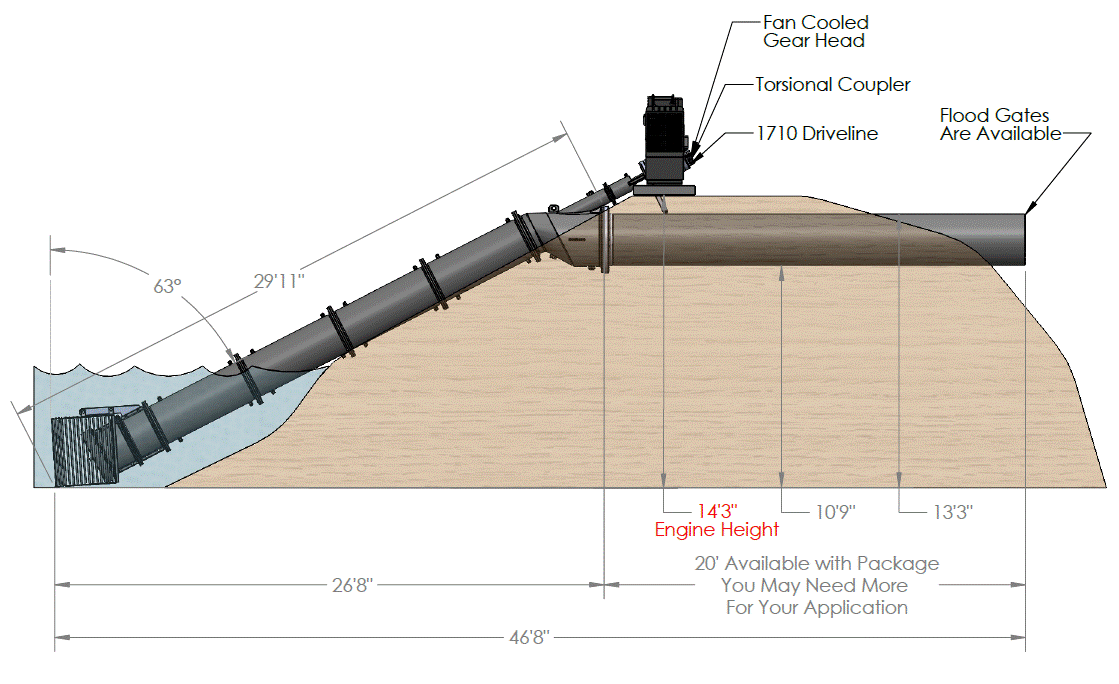

4 Section
Lift
13’3”
13.250
Power Unit Water Hog -
4 Section (Side View)

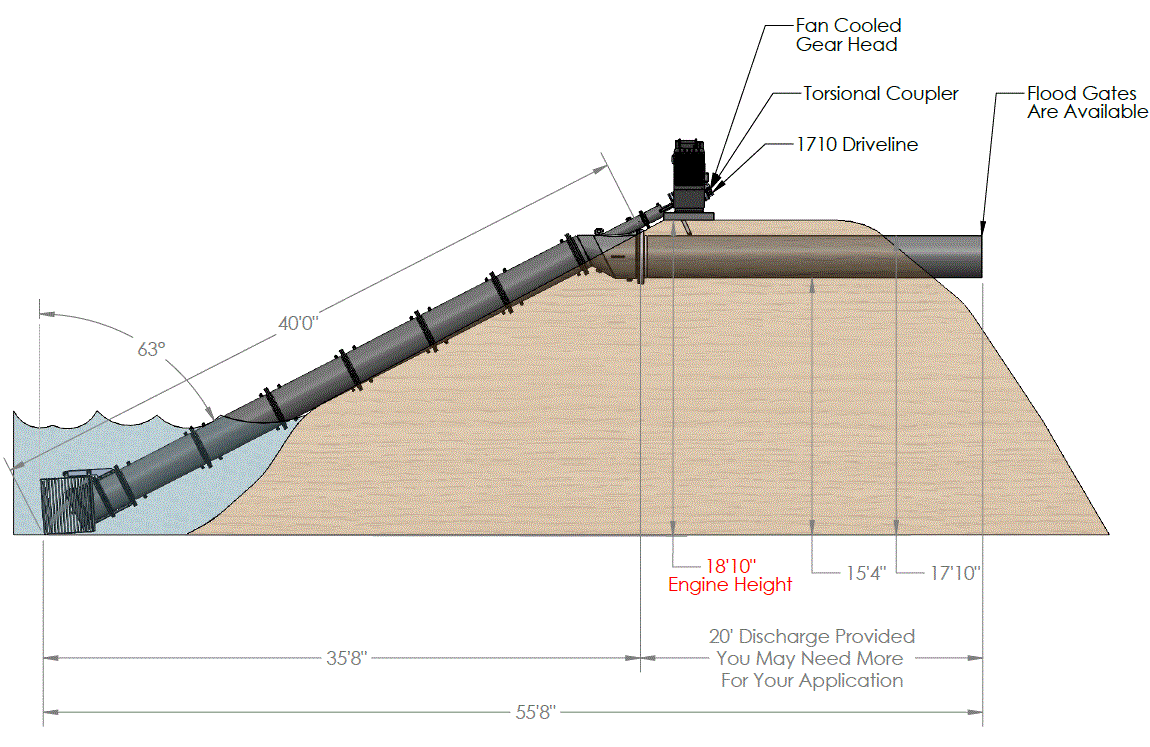

6 Section
Lift
17’10”
17.833
Power Unit Water Hog -
6 Section (Side View)

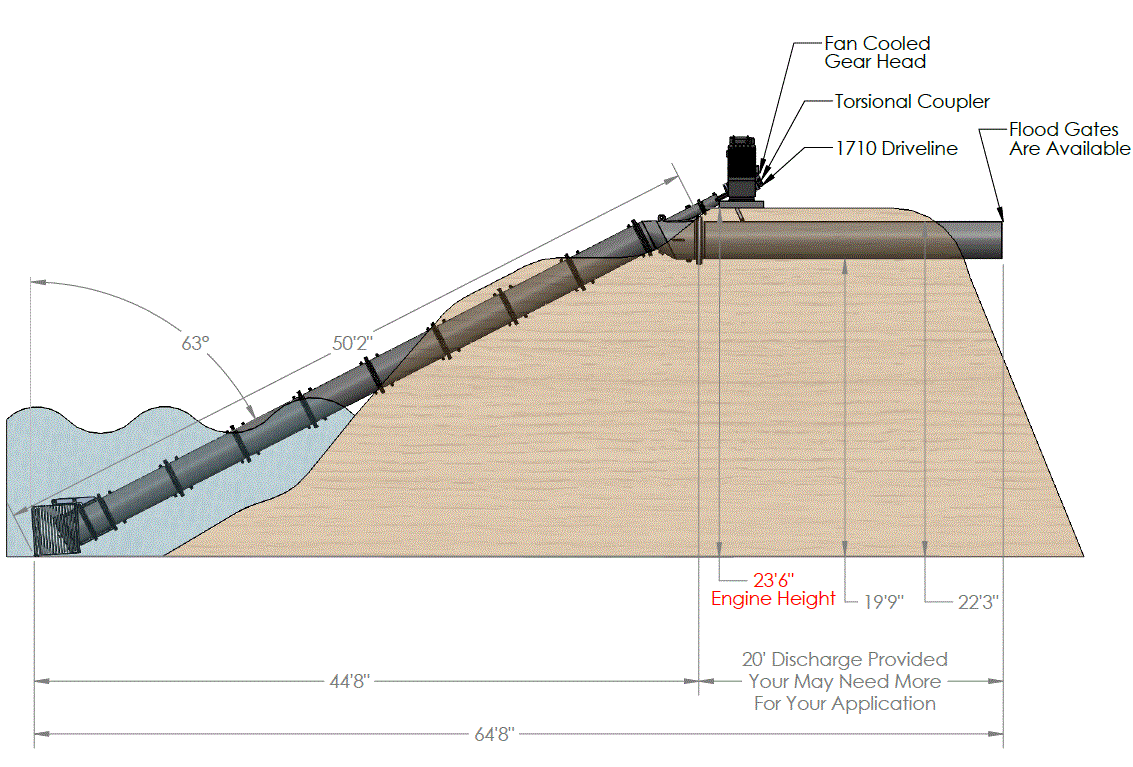

8 Section
Lift
23’3”
23.250
